PFH Series

Model:

Number of Port:

select

Product Feature

Copy speed of 60GB/min, FPGA architecture, flagship product of UReach.

Production log reports to record all key information during the duplication process, enabling full traceability and easy management.

Image file function that allows creating and storing master images on the built-in hard drive, freeing up the master port and increasing productivity.

Contact Now Download

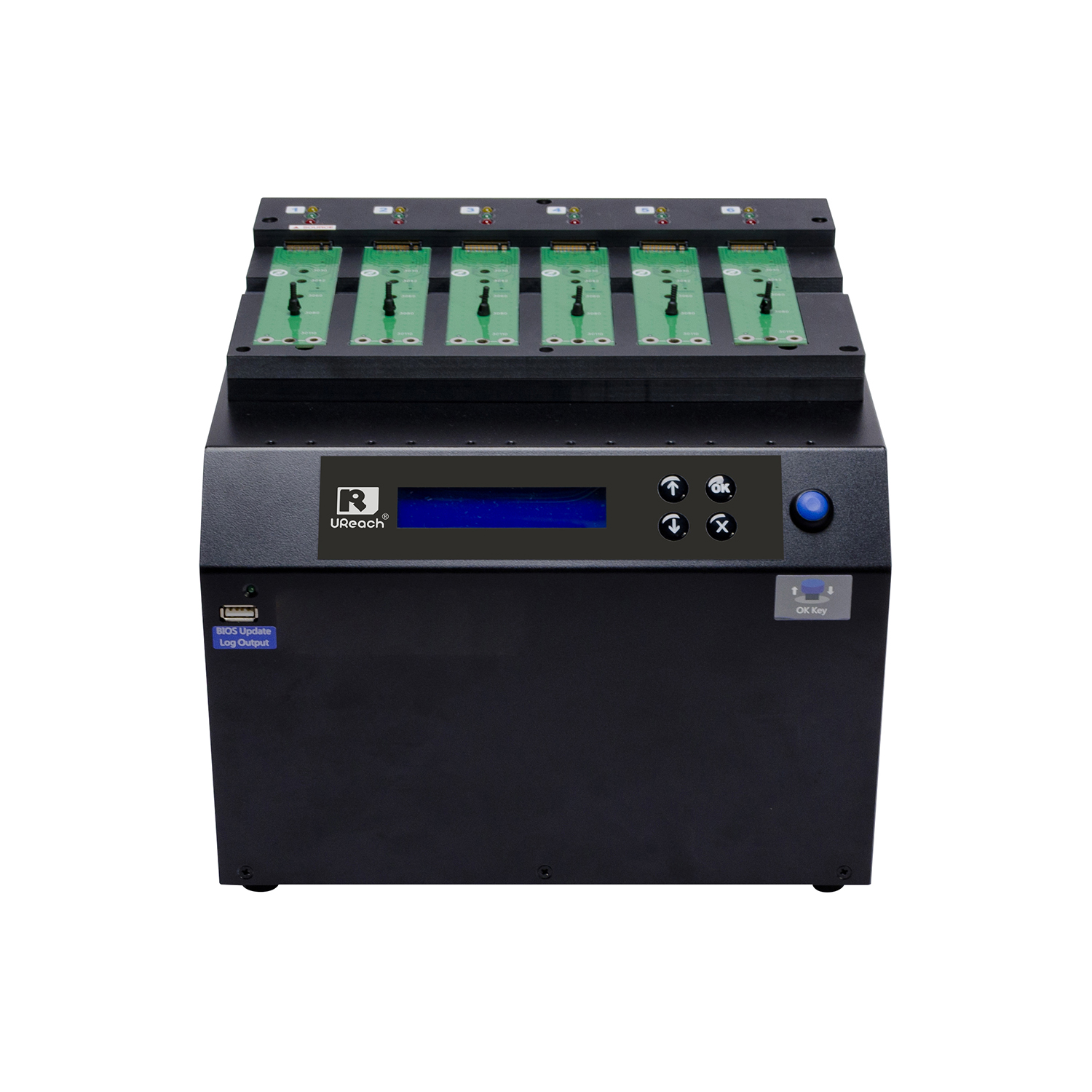

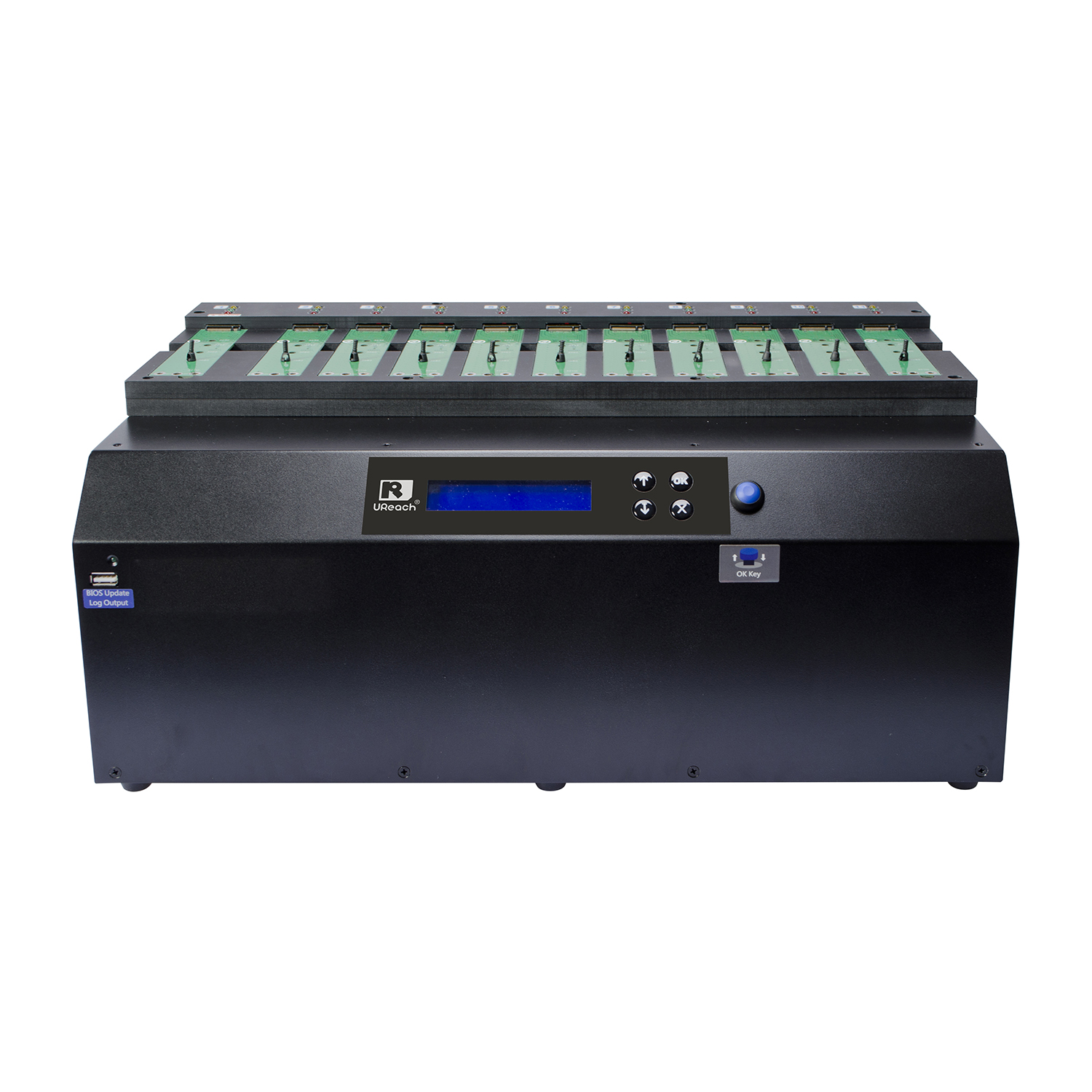

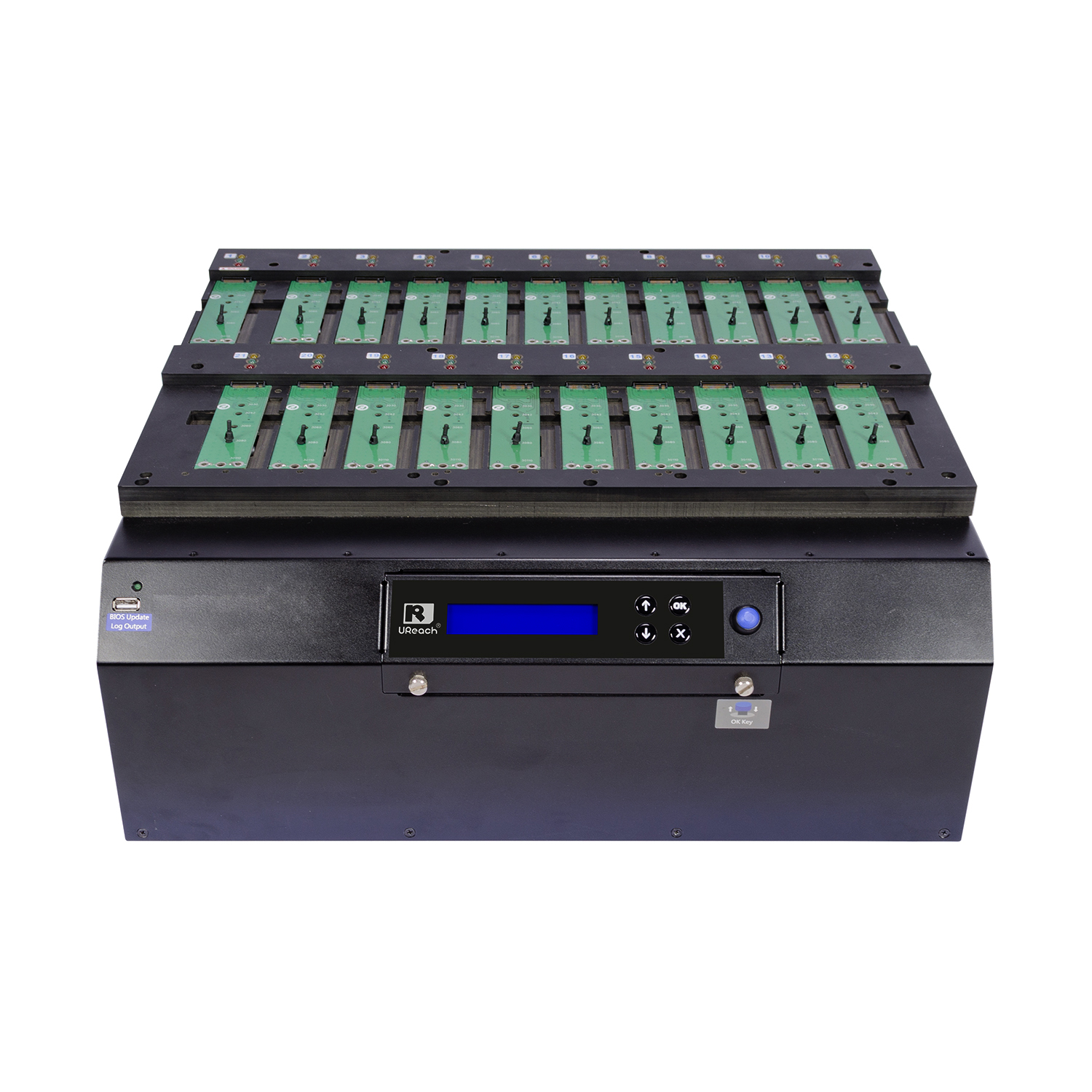

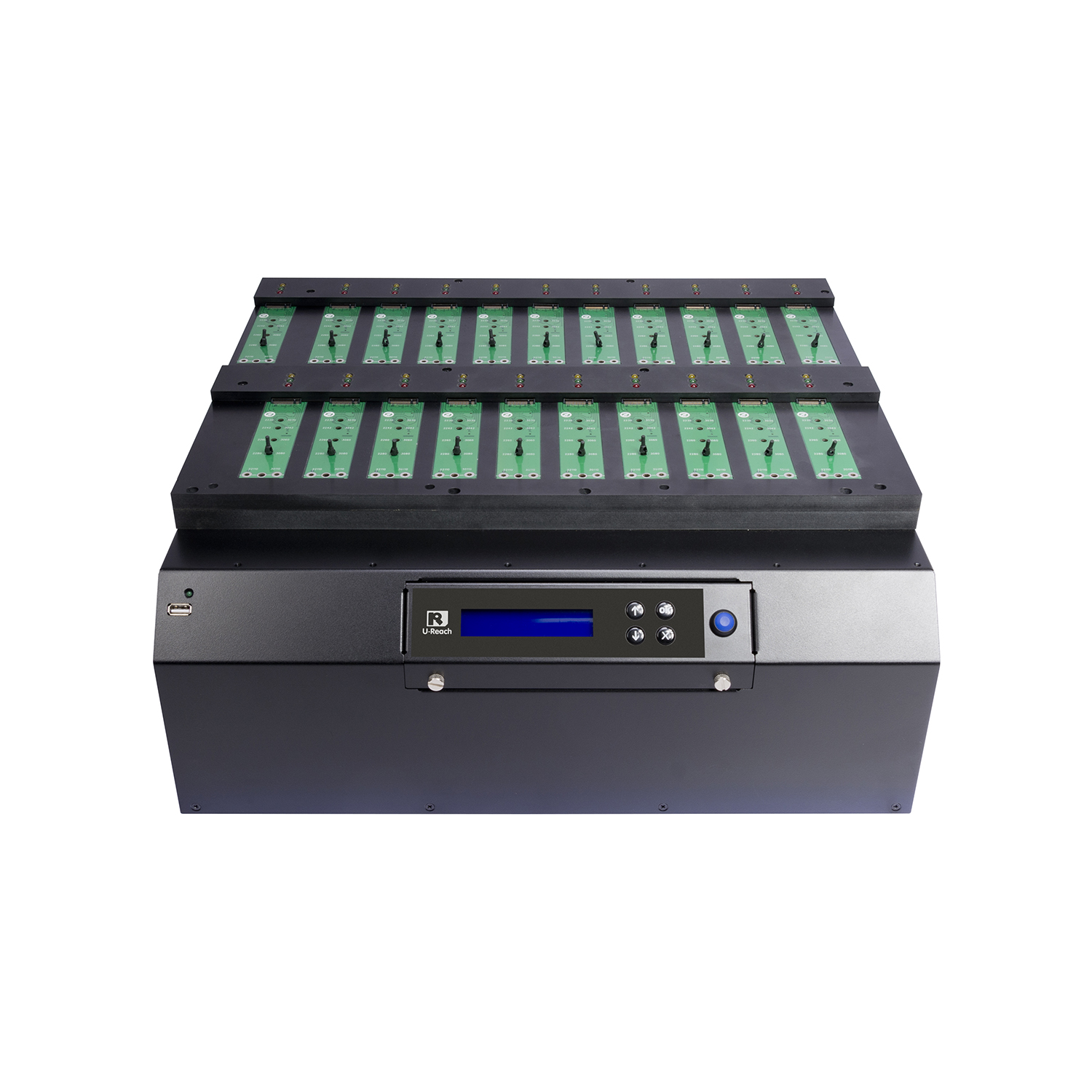

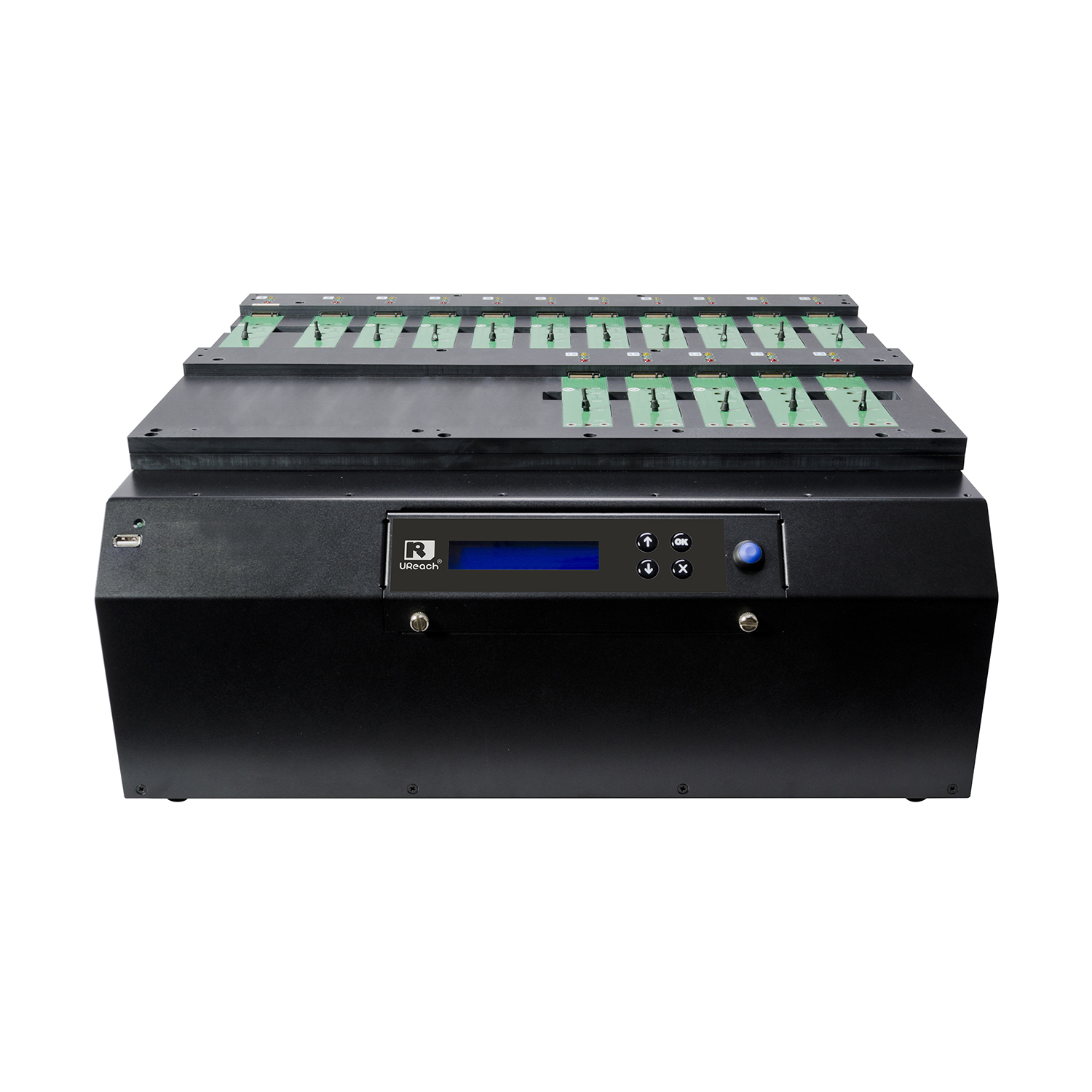

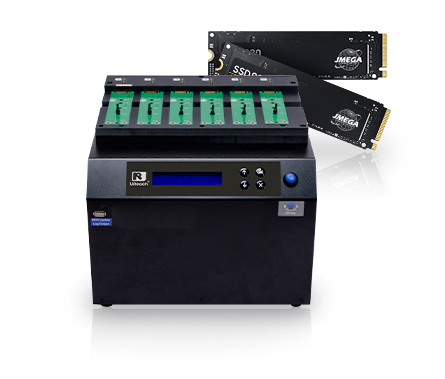

PFH Series: M.2 Duplicator

PFH Series PCIe M.2 SSD duplicator is specially designed for high volume duplication. It is adopted a unique multitasking technology that can simultaneously copy up to 20 PCIe M.2 targets with a high transfer speed of 60 GB per minute. We guarantee the highest productivity without speed degradation even as the number of targets increase.

Ultra-high Copy Speed:

Enables 1-20 duplication at 60 GB/min.
Cross-Signal Duplication
Image Management

Product Features of PFH Series

Ultra-FAST copying

The PF-H Series duplicator delivers industry-leading transfer speeds of up to 60GB/min（1000MB/s）.

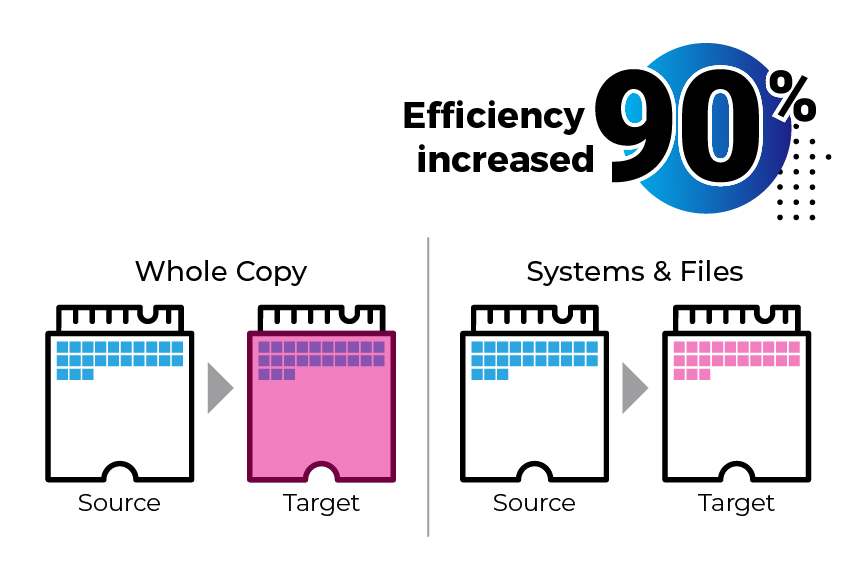

Intelligent Duplication modes

The U-Reach SSD duplicator offers a wide range of dupllicator modes

Intelligent Duplication modes It can duplicate a 30GB windows 10 0s in just 30 seconds, significantly boosting production efficiency for bulk operations.

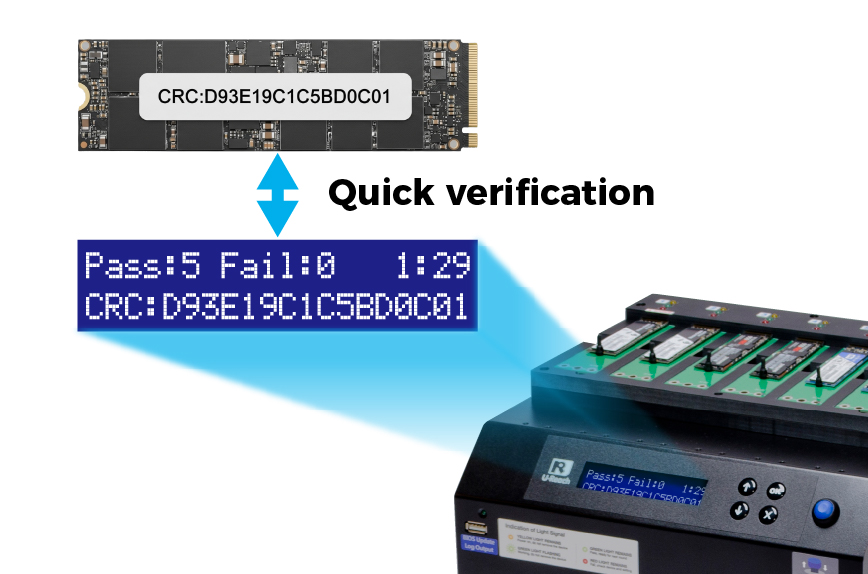

Verification of Data Integrity

The CRC of each master disc is uniquely fixed,Detect whether errors occur during data transmission or storage. with the advantages of reliability and high efficiency.

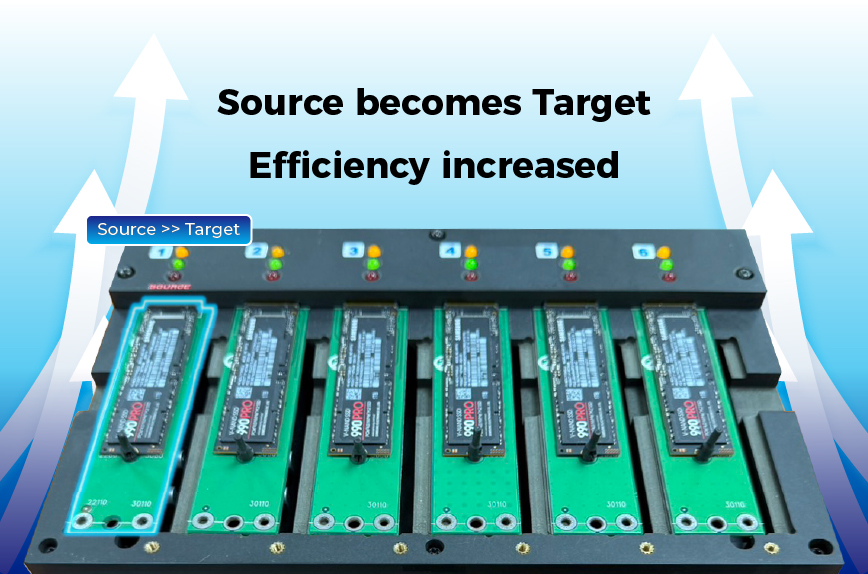

Mirror file function

Supports SSD internal storage,Store and utilize several images for quick and convenient duplication. And it can release the mother source and increase the production capacity.

Event Log report

Record the equipment model, serial number, rate and PASS/FAIL results to achieve 100% production quality traceability and conform to the ISO quality management system.

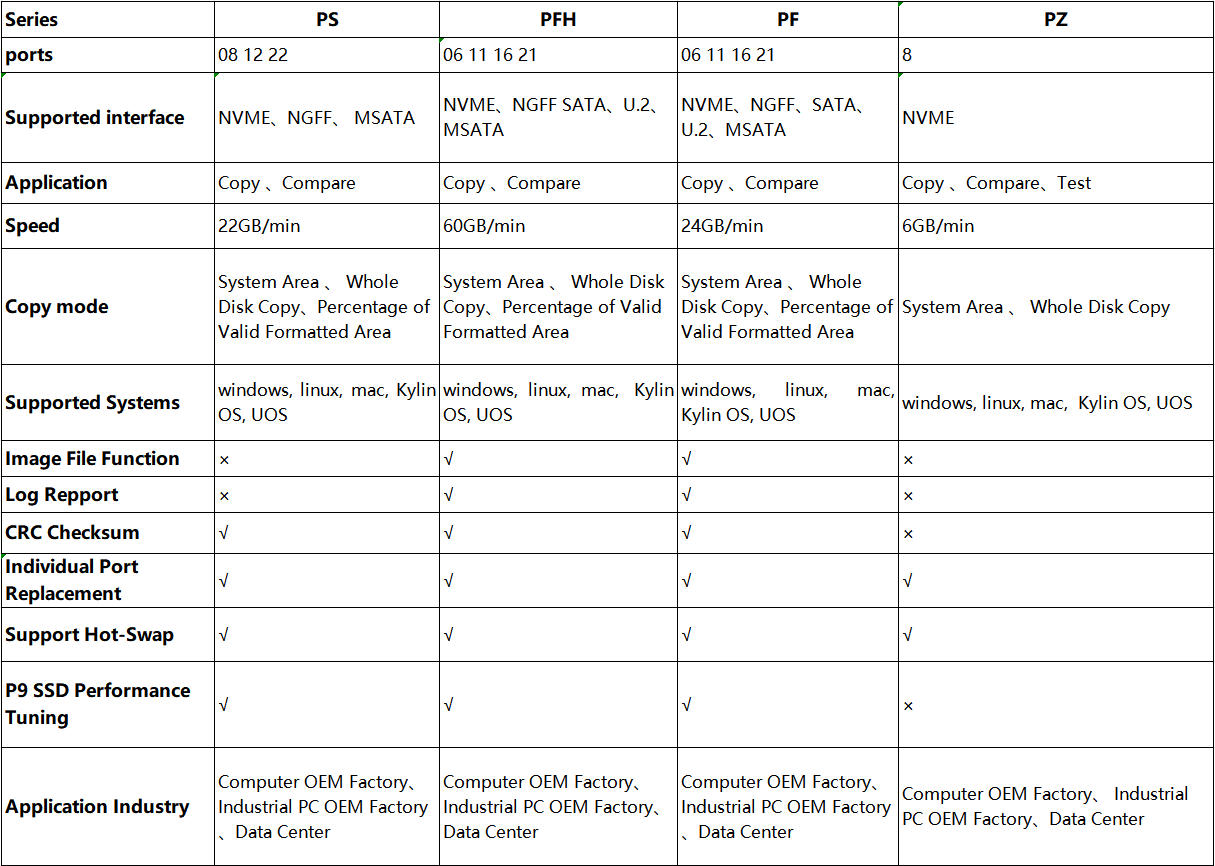

Selection Parameter Table for PFH Series

Compare PFH Series Modles

Enter Your Requirements to Obtain a Capacity Trial Calculation for JMEGA Products.

PFH Series

PZ Series

PS Series

PF Series

Product Transmission Speed

GB / Min

Select Product Ports

select 1

select 2

select 3

select 4

select 5

Please Enter the Amount of Information (GB)

This field is required!

Please Enter Your Working Hours (Hours)

This field is required!

EStart the Trial Calculation

PFH Series

PZ Series

PS Series

PF Series

Product Transmission Speed

GB / Min

Select Product Ports

select 1

select 2

select 3

select 4

select 5

Please Enter the Amount of Information (GB)

This field is required!

Please Enter Your Working Hours (Hours)

This field is required!

EStart the Trial Calculation

Calculation Result

Product Model Number

Estimated Production Capacity

Product Model Number

Estimated Production Capacity

Top FAQs for PFH Series

Gain a Getailed Understanding of the Experience of Using the Product and what needs to be done when Encountering Problems.

The PFH series offers a speed of 60GB/min (1,000MB/s), making it the fastest M.2 duplicator currently available on the market. The PF series runs at 24GB/min (400MB/s). Both are flagship models under the UReach brand.

It supports up to 30,000 insertion/removal cycles and has been certified by a professional third-party organization. A one-month warranty is included. Since manual operations may introduce variations, we recommend careful handling to extend connector life.

It records key information during the duplication process, such as HDD serial numbers, duplication time, result (success or failure), and CRC verification values. This allows customers to trace each duplicated drive by serial number, identify copy success, prevent unauthorized duplication or wrong content duplication, and assist in post-sales support.

Up to 30,000 logs. Older logs will be overwritten in a continuous cycle.

It creates a full clone of the master drive and stores it as an image file on the built-in HDD. During duplication, the image can be used instead of a physical master, freeing up the master port, increasing productivity, and reducing risks of using the wrong source.

It depends on the size of the system data. The device includes a 256GB 2.5” SATA drive, which typically stores 10 image files. You may upgrade to a 1TB or larger drive.

No. The master drive’s capacity must be equal to or smaller than the target drive, or an error will occur.

With over 20 years of development and cooperation with major controller vendors, our duplicators are widely compatible with drives across brands and solutions.
