TU Series

Model:

Number of Port:

select

Product Feature

Equipped with 500MB/s SATA 3.0 copy speed.

Built-in H2 and H5 SSD incoming inspection test functions.

Quality Analytical Report & PC Link Monitor as two key production record tools.

Log chart: Logs copy results, time, SSD serial number, and CRC verification.

Log chart displays supplier shipment/production quality certificates, production issue tracking, and SSD serial number material management.

Contact Now Download

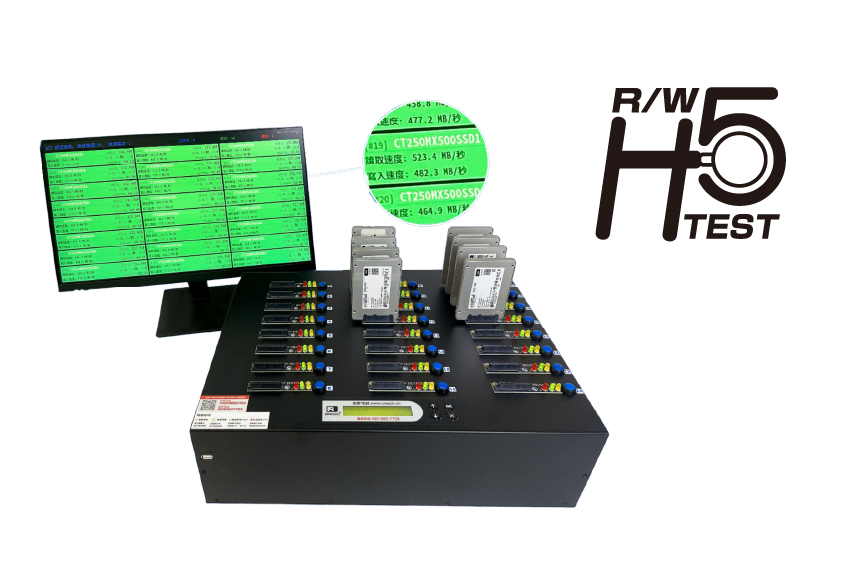

Professional 2.5” SATA SSD Duplicator

Equipped with industry-standard testing tools including BIT aging, H2, and UReach’s proprietary H5 read/write test, this device supports multiple test modes such as speed, capacity, and bad block detection—designed to meet a wide range of SSD inspection needs.With a high-speed SATA 3.0 interface, it achieves up to 30GB per minute read/write performance, allowing for efficient batch testing of SSDs.Test reports can be exported for quality assurance and traceability.

High-speed copying at 30GB per minute, supporting SATA 3.0 interface.
Industrial-grade architecture with asynchronous per-port operation, ensuring no speed reduction.
Rigorous Aging Read/Write Test & H2/UReach H5 Protocols.

Product Features of TU Series

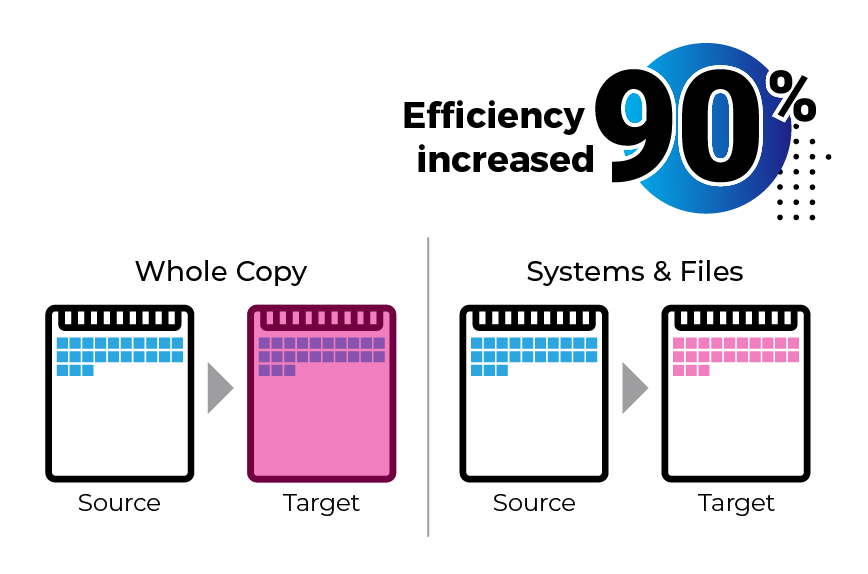

Intelligent Duplication modes

The U-Reach SSD duplicator offers a wide range of dupllicator modes.Intelligent Duplication Mode: It only takes 1.5 minutes to duplicate a 30GB Windows 10 system, greatly improving production efficiency in batch operations.

Nvme hard disk can be detected

Adapt to customers who copy and detect different usage scenarios, warn faults in advance, troubleshoot in advance to ensure the security of the master disk data, and avoid the risk of the master disk losing data after copying the sub-disk due to bad blocks and other reasons.

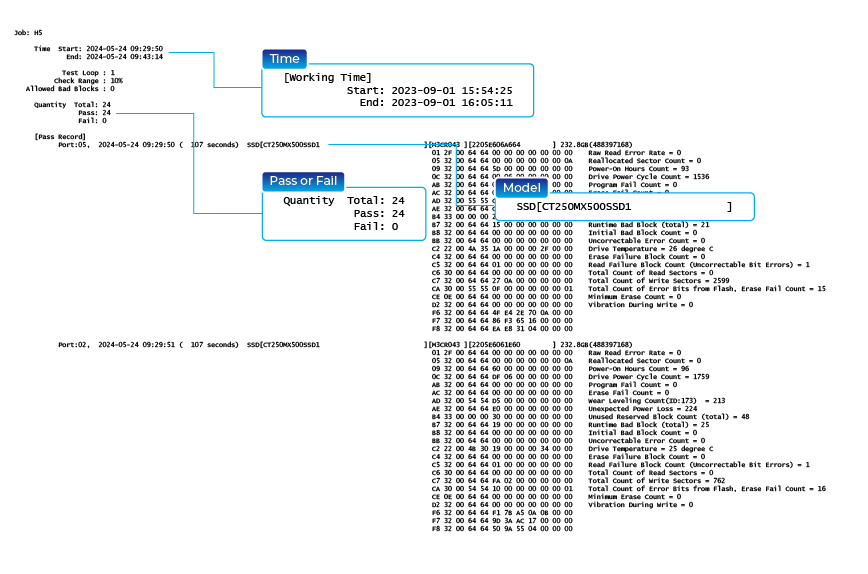

Event Log report

Record the equipment model, serial number, rate and PASS/FAIL results to achieve 100% production quality traceability and conform to the ISO quality management system.

Compare TU Series Modles

Enter Your Requirements to Obtain a Capacity Trial Calculation for JMEGA Products.

TU Series

Product Transmission Speed

GB / Min

Select Product Ports

select 1

select 2

select 3

select 4

select 5

Please Enter the Amount of Information (GB)

This field is required!

Please Enter Your Working Hours (Hours)

This field is required!

EStart the Trial Calculation

TU Series

Product Transmission Speed

GB / Min

Select Product Ports

select 1

select 2

select 3

select 4

select 5

Please Enter the Amount of Information (GB)

This field is required!

Please Enter Your Working Hours (Hours)

This field is required!

EStart the Trial Calculation

Calculation Result

Product Model Number

Estimated Production Capacity

Product Model Number

Estimated Production Capacity

Top FAQs for TU Series

Gain a Getailed Understanding of the Experience of Using the Product and what needs to be done when Encountering Problems.

No. The TU2400, built on FPGA architecture, offers independent 500MB/s high-speed per port. For example, it can copy 30GB Windows systems to 23 SSDs in just one minute.

It supports all drives that use the SATA protocol, including mSATA, SATA M.2, 2.5” and 3.5” HDDs & SSDs.

Yes, we offer customization services based on client needs. Please refer to the custom section on our website for examples.

They allow pre-shipment testing of SSDs from overseas suppliers, ensuring functionality before assembly, and reducing rework time and labor.

Only the adapter boards are consumables. They are modular and can be replaced in 10 seconds using our video tutorial.

Main units have a 1-year warranty covering motherboard, power supply, display, and cables. Adapter boards have a 1-month warranty. You can contact our branches or HQ for service worldwide.
