PS Series

Model:

Number of Port:

select

Product Feature

Copies system and data areas by automatically analyzing the source drive, with a speed of 22GB/min, increasing productivity by more than 20 times compared to traditional duplication methods.

Supports hot swapping, no need to power off between duplication cycles, improving production efficiency.

Dual protection via CRC verification and data comparison to ensure target and source data are identical, eliminating data loss risks.

Contact Now Download

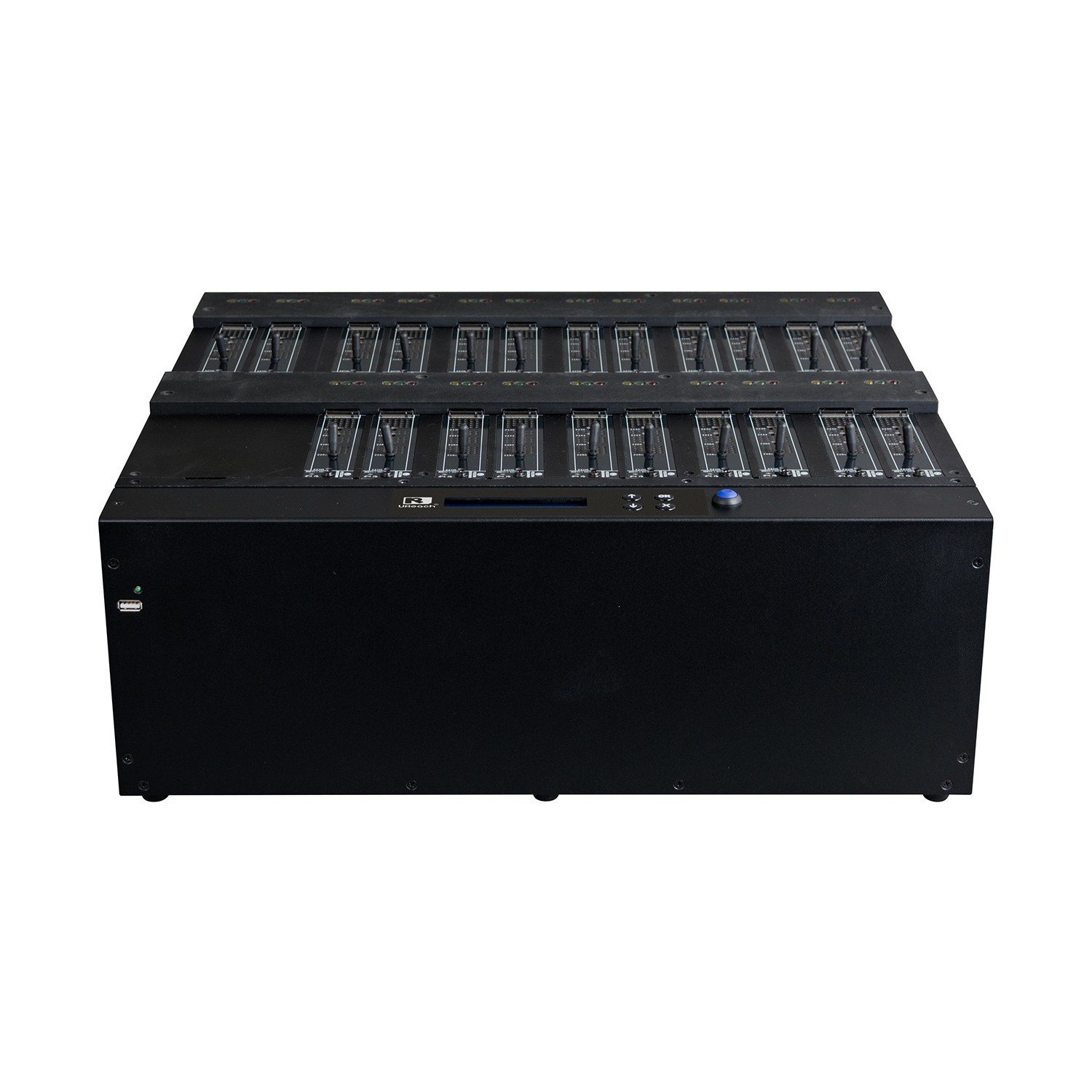

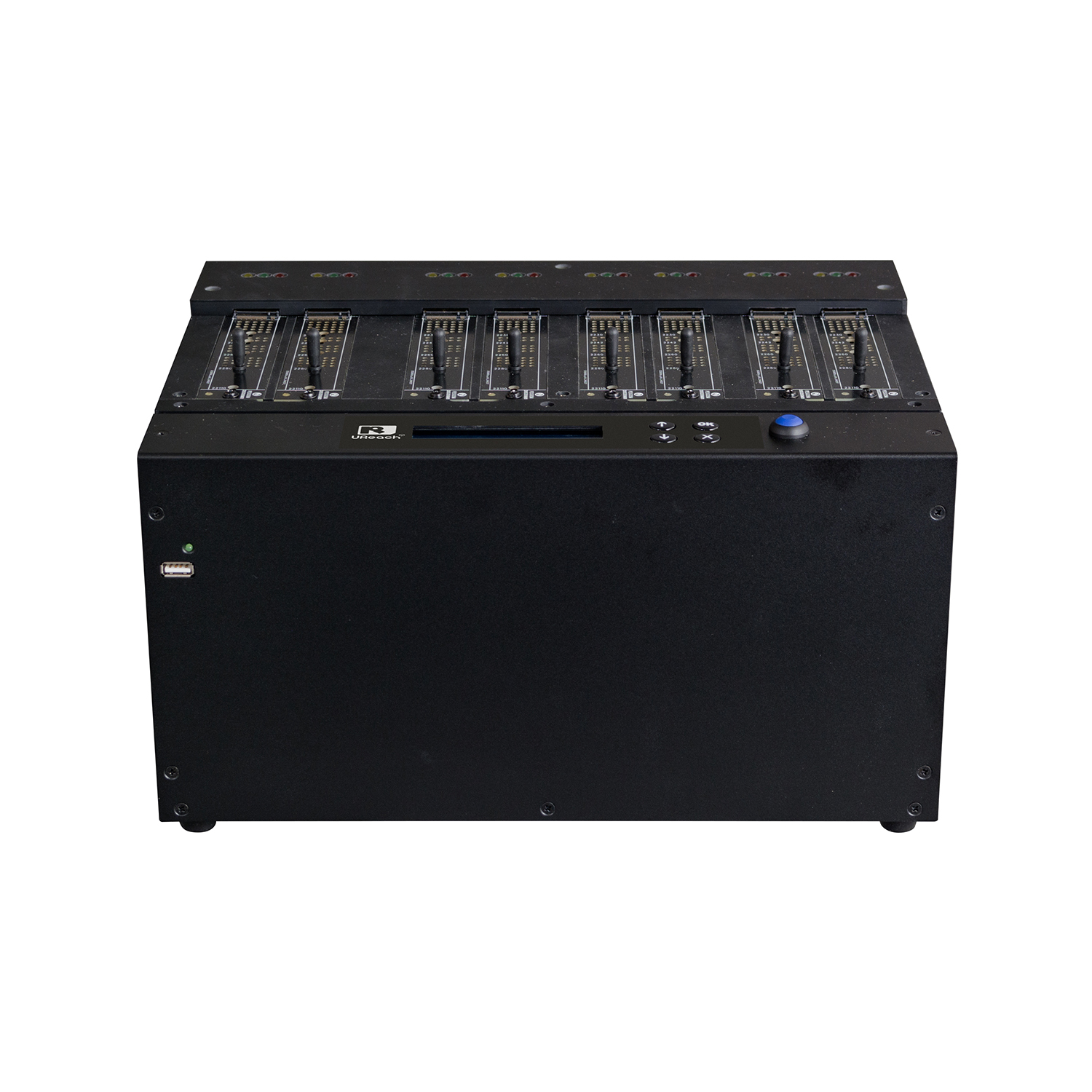

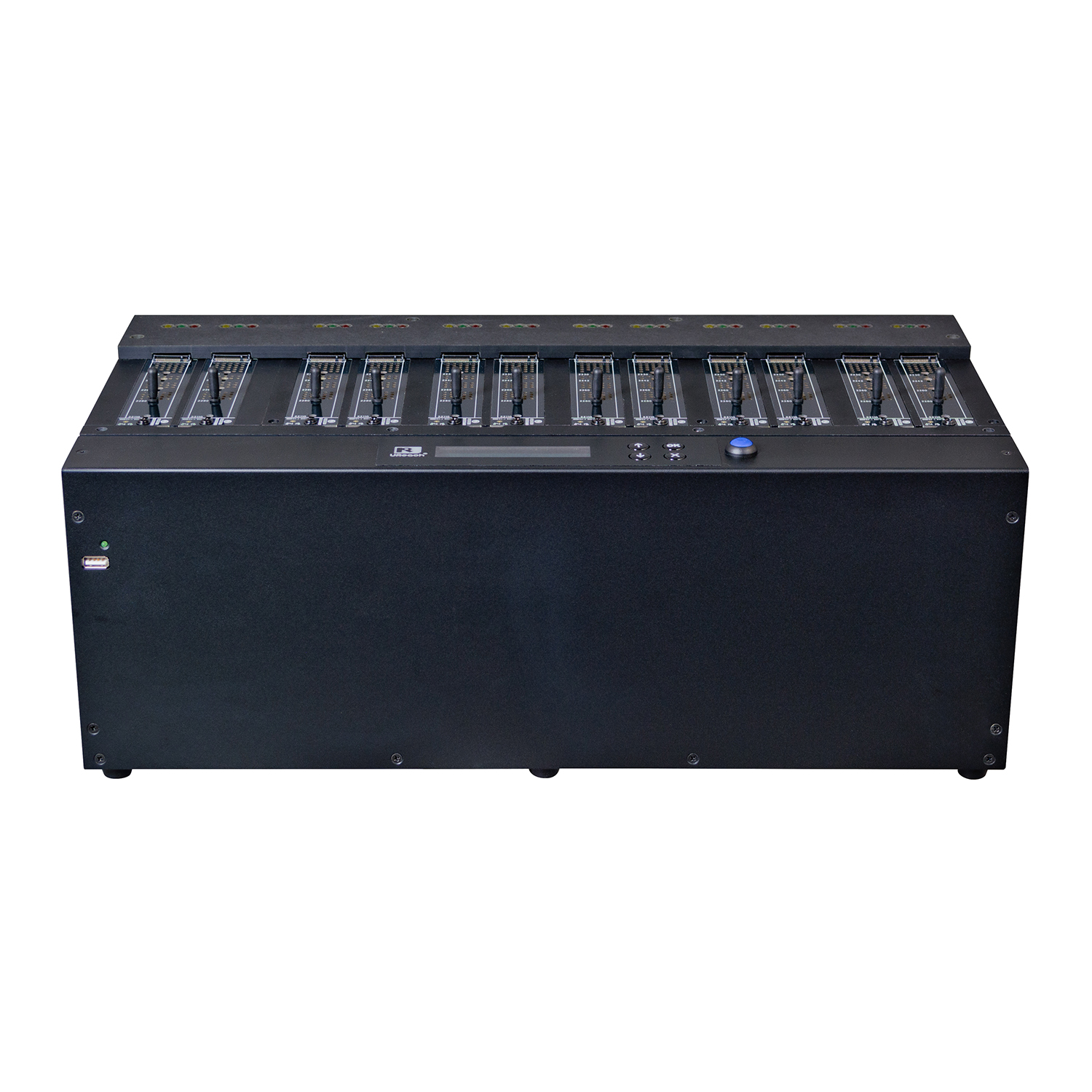

PS Series NVMe M.2 SSD Duplicator

The new generation PS Series PCIe duplicator is specifically designed for M.2 SSD users. It features unique multitasking technology that allows simultaneous copying of up to 21 PCIe M.2 targets at a transfer speed of up to 22 GB per minute. This ensures the highest productivity without any speed degradation, even as the number of targets increases.

High Copy Speed：

The speed specification is 22GB/min.
Cross-Signal Duplication：

Supports NGFF (SATA M.2 SSD) copy to NVMe M.2 SSD.
Compare + CRC verification

Product Features of PS Series

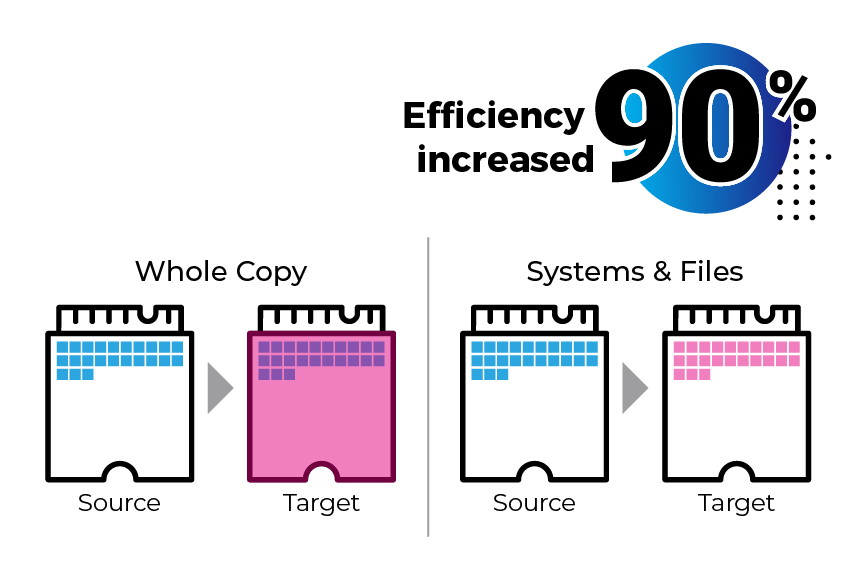

Intelligent Duplication modes

The U-Reach SSD duplicator offers a wide range of dupllicator modes

Intelligent Duplication modes The system data area copy of the master disk can be quickly analysed. significantly boosting production efficiency for bulk operations.

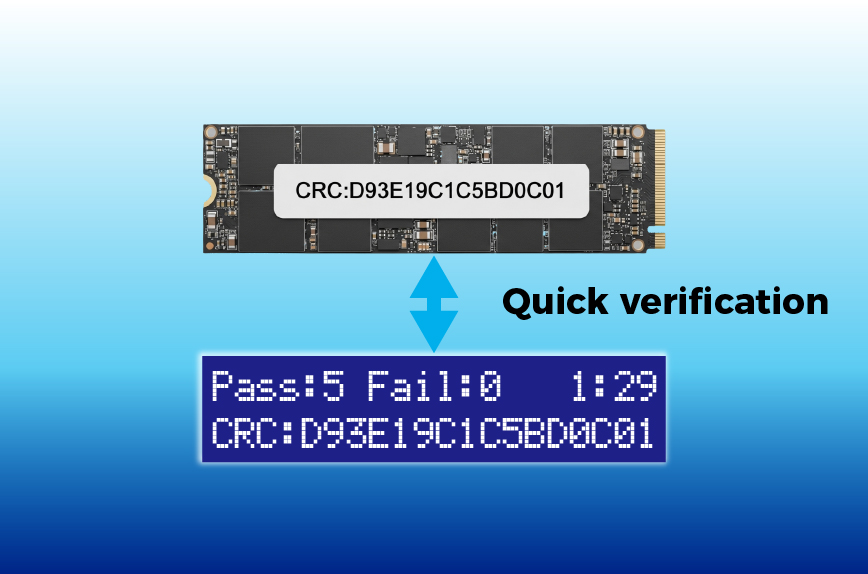

Verification of Data Integrity

The CRC of each master disc is uniquely fixed,Detect whether errors occur during data transmission or storage. with the advantages of reliability and high efficiency.

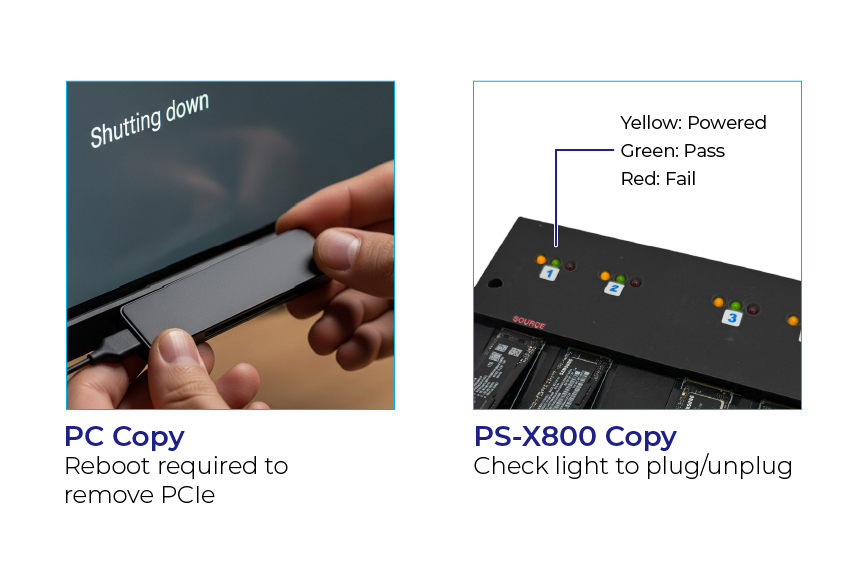

Hot swapping

The faulty SSD can be directly replaced during operation, without interrupting the whole machine replication, the continuous operation efficiency of the production line is increased by 40%, and the operation and maintenance cost is reduced by 30%.

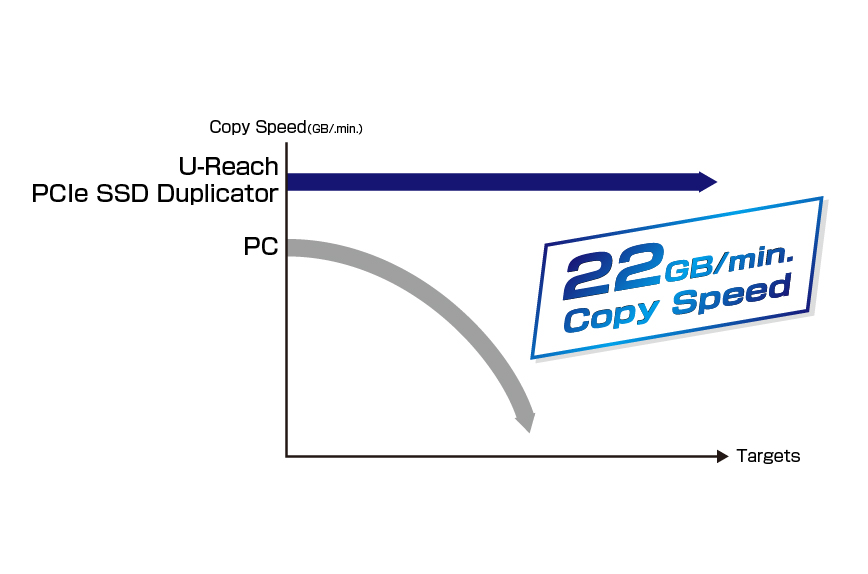

No speed degradation

Each port is designed with an independent bandwidth, and the speed does not attenuate when the target number increases.

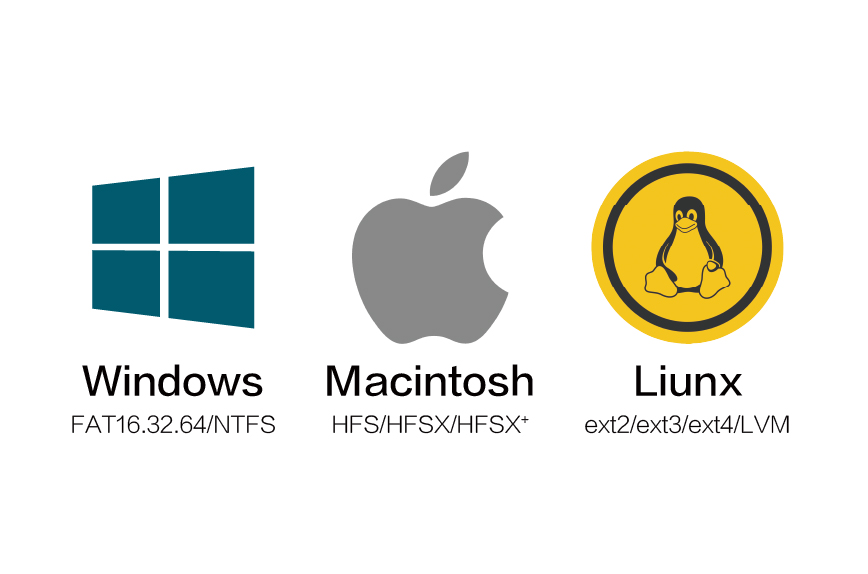

High compatibality

Quick copy mode supports Windows (FAT16/32/64), Linux (ext2/ext3/ext4/lvm), and Mac (HFS/HFS+/HFSX) formats. Whole media copy mode supports all system and proprietary formats.

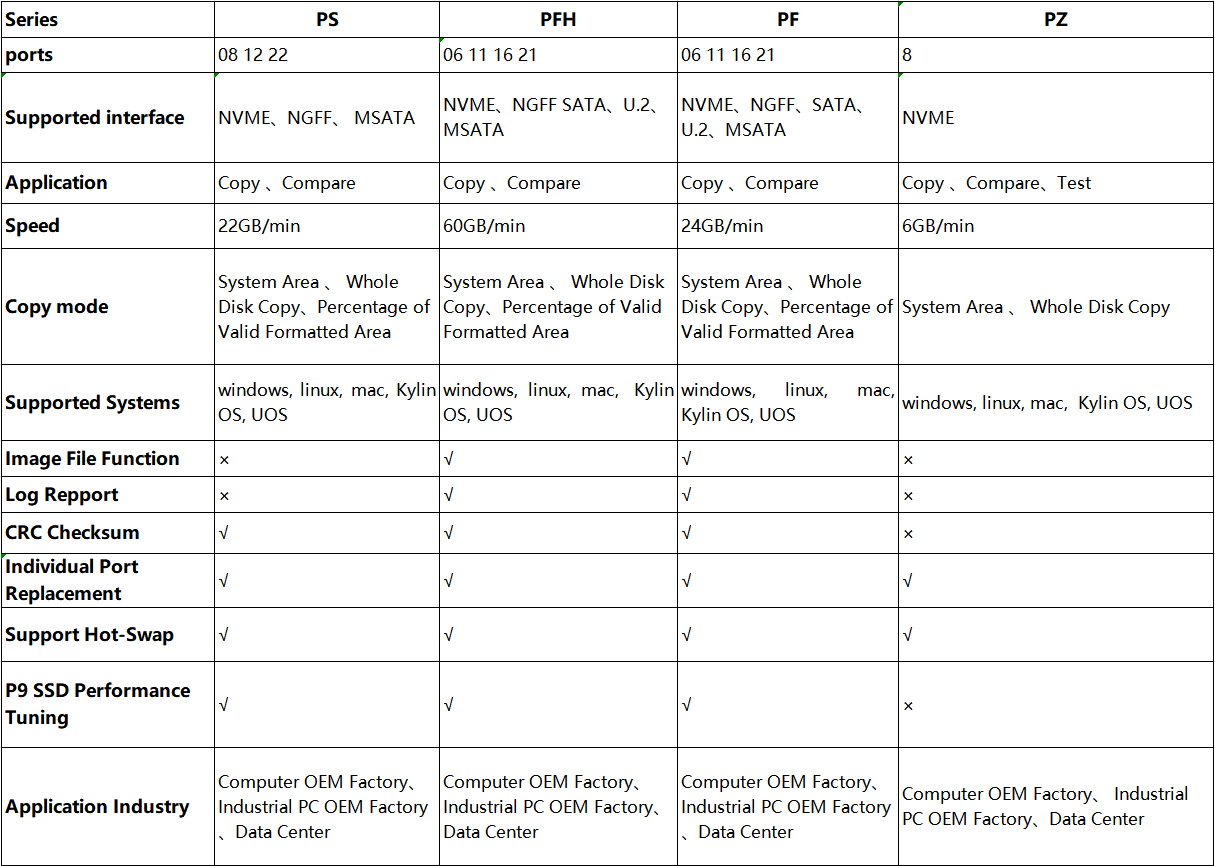

Selection Parameter Table for PS Series

Compare PS Series Modles

Enter Your Requirements to Obtain a Capacity Trial Calculation for JMEGA Products.

PFH Series

PZ Series

PS Series

PF Series

Product Transmission Speed

GB / Min

Select Product Ports

select 1

select 2

select 3

select 4

select 5

Please Enter the Amount of Information (GB)

This field is required!

Please Enter Your Working Hours (Hours)

This field is required!

EStart the Trial Calculation

PFH Series

PZ Series

PS Series

PF Series

Product Transmission Speed

GB / Min

Select Product Ports

select 1

select 2

select 3

select 4

select 5

Please Enter the Amount of Information (GB)

This field is required!

Please Enter Your Working Hours (Hours)

This field is required!

EStart the Trial Calculation

Calculation Result

Product Model Number

Estimated Production Capacity

Product Model Number

Estimated Production Capacity

Top FAQs for PS Series

Gain a Getailed Understanding of the Experience of Using the Product and what needs to be done when Encountering Problems.

Each machine is equipped with a fast duplication engine that identifies and copies only the system/data areas of the source. Speed reaches 22GB/min, over 20 times faster than traditional methods.

No. Dual protection mechanisms, including data comparison and CRC verification, ensure exact matches. Master ports are read-only, preventing data loss due to source drive corruption.

Yes, it supports adapters for mSATA duplication.

The system uses a closed FPGA architecture that enables efficient parallel processing, multi-protocol compatibility, and stable, high-speed copying.

No. It is available in either full-Chinese or full-English models. The English model is more expensive. For overseas shipments, we recommend using the Chinese model with a bilingual operation reference guide to reduce cost.
